IH chemical pump
Share to
- 产品描述
-
Summary
The IS and IH pump series are single-stage single suction centrifugal pumps designed according to the international standard ISO2858, and are the replacement products of the B and BA water pumps. Suitable for industrial and urban water supply and drainage, and can also be used for agricultural irrigation and drainage. Used for conveying clean water and other liquids with physical and chemical properties similar to clean water, with a temperature not exceeding 80 ℃.
IH type chemical pumps are mainly used for transporting corrosive liquids and non polluting media.
IS (R), IH performance range (based on design points):
Rotational speed: 2900r/min and 1450r/min
Imported diameter: 50-200mm
Flow rate: 6.3-400m 3/h
Field distance: 5-125mMarking of pumps
(e.g. IS (R) IH80-65-160)
IS(R)--Single stage single suction clear water centrifugal pump (hot water circulation pump)
IH--chemical pump
80--Inlet diameter (mm)
65--Discharge outlet diameter (mm)
160--Nominal diameter of impeller (mm)
A…--Blade cutting grade
J (also known as D)--Deceleration performance pump

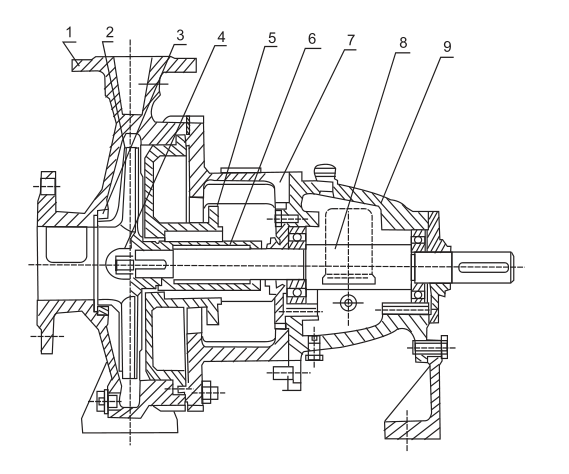

Structural diagram
1. Pump body
2. Impeller
3. Sealing ring
4. Impeller nut
5. Pump cover
6. Sealing components
7. Middle bracket
8. Axis
9. Suspension components
FAQ
Q
Can you provide product repair and maintenance services?
A
Q
Product problems, how to get after-sales support?
A
Q
What is the mode of transport of goods?
A
Q
What are the payment methods?
A
Q
How long is the cycle of customized products?
A
Q
Do you support product customization? What aspects can be customized?
A
No matter how complex your needs are, just tell the specific parameters, application scenarios and performance goals, and our technical team will provide you with a one-stop service from solution design to delivery to ensure that the product meets your needs by 100! Contact us today to start a customized tour.
Keywords:
FAQ
Q
Can you provide product repair and maintenance services?
A
Of course. We not only provide after-sales service, but also provide you with professional maintenance advice and training. Our technicians can carry out regular inspection and maintenance for your equipment, find and solve potential problems in time, extend the service life of equipment, and reduce your operating costs.
Q
Product problems, how to get after-sales support?
A
If you encounter problems in the process of using our products, you can contact our after-sales team at any time. You can feedback your questions through the after-sales consultation channel on the website, and we will respond within [specific time]. For common problems, we will guide you to solve them by phone or email; if you need on-site service, we will arrange professional and technical personnel to go to your location as soon as possible.
Q
What is the mode of transport of goods?
A
We cooperate with a number of professional international freight forwarding companies, and can choose the appropriate mode of transportation according to your requirements, including sea, air, land, etc. At the time of order confirmation, we will recommend you the most cost-effective transportation plan according to the weight, volume, delivery time and other factors, and be responsible for the safe delivery of the goods to the place you specify.
Q
What are the payment methods?
A
We accept a variety of international payment methods, such as T/T (wire transfer), L/C (letter of credit) and so on. The specific payment method can be determined through negotiation with us according to your needs and orders.
Q
How long is the cycle of customized products?
A
The customization cycle will vary depending on the complexity of the product and the volume of the order. In general, it takes about 1 week from requirement confirmation to sample delivery, and mass production is completed within 3 weeks after sample confirmation. We will give a more accurate estimated time when communicating with you, and feedback the progress to you in the production process.
Q
Do you support product customization? What aspects can be customized?
A
Yes, we have strong customization capabilities. The pump body material (such as wear-resistant alloy, anti-corrosion rubber, special steel, etc.), caliber size, export direction, overall size, length under liquid, etc. can be customized according to your needs. At the same time, you can also choose electric motors or diesel engines and other power equipment.
