Foam pump
Share to
- 产品描述
-
Overview
AF series foam pumps are widely used in metallurgical, coal, chemical and other industrial sectors. It is suitable for conveying abrasive and corrosive slag slurry containing foam. This series of pumps can effectively eliminate foam in slurry when working. It can still work normally in case of insufficient incoming materials, especially suitable for various flotation process flows, and is an ideal product for conveying foam slurry.
Parameter
Model Power kw Internet traffic Lift Rotational speed Efficiency Import Export 2QV-AF 3-15 6-43 6-30 800-1800 45 100 50 3QV-AF 3-18.5 23-120 5-35 700-1600 55 150 75 4RV-AF 5.5-37 33-187 5-28 500-1200 55 150 100 6SV-AF 15-75 80-393 5-25 250-680 55 200 150 8SV-AF 37-110 126-575 5-26 350-650 55 200 200 Structural description
AF series foam pump is simple in structure, high in versatility, and easy to install and use.
1. Transmission part: This type of pump transmission part is compatible with SP and SPR series slurry. The bearing body is equipped with a motor seat or electrode frame, which can be directly or indirectly transmitted. The belt pulley can be easily replaced to change the pump speed to meet the changing working conditions
2. The charging box is of steel structure and is equipped with a tangential inlet and an overflow box. The overflow box can easily send the excess incoming materials back to the charging pool. The tangential inlet can make the materials quickly enter the pump and eliminate some foam.

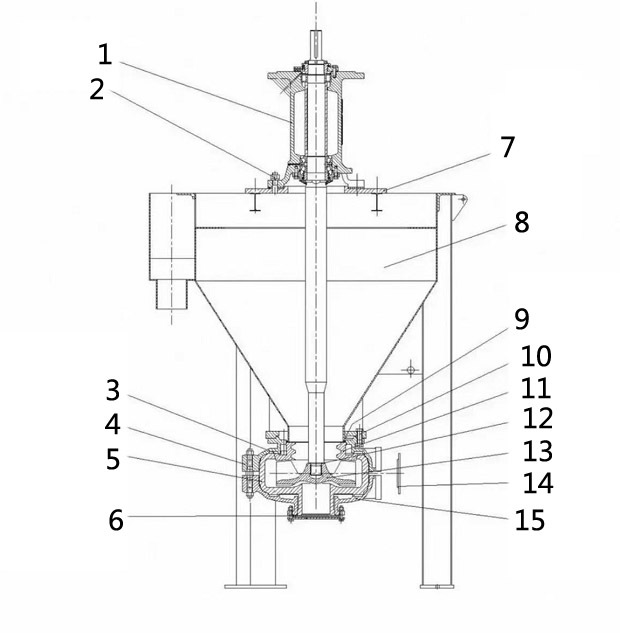

3. Pump head: The pump head structure is compatible with the AH series slurry pump. It has a dual pump casing structure, and its pump body, pump cover, front guard plate, etc. are compatible with slurry pumps of the same caliber as the AH series. According to the different conveying media, the material of the overcurrent components can be metal, rubber, or other non-metallic materials. For metal materials, their pump body, pump cover, sheath, front guard plate, etc. are compatible with AH series system caliber slurry pumps. For rubber or other non-metallic materials, the front and rear sheaths are compatible with slurry pumps of the same caliber as the AHR series. AF type foam pump structure includes: pump body, pump cover, front guard plate, sheath, impeller, guard plate, material box, shaft, bearing body, bearing, labyrinth sleeve, shaft sleeve, bearing, end cover and oil slinger.Structure Diagram
1.Bearing body
2.Bearing body bolts
3.seal pad
4.pump body
5.volute
6.seal pad
7.Bearing body mounting plate
8.Material box bucket
9.Container sealing gasket
10.Pump body bolts
11.Spiral front guard plate
12.o-ring
13.impeller
14.Export sealing gasket
15.pump cover
