DT desulfurization pump
Share to
- 产品描述
-
The purpose and scope of application of the pump
The DT series desulfurization pumps developed by our factory are divided into two structures: horizontal (DT) and vertical (TL). For axial suction, single suction, cantilever centrifugal structure. This series of pumps comprehensively applies the advantages of similar products at home and abroad and innovates in hydraulic design, structural design, and materials used for castings. It has the characteristics of high efficiency, energy saving, corrosion and wear resistance, low vibration, low noise, reliable operation, long service life, and easy maintenance. The comprehensive performance of the pump is at the leading level in China. It can be widely used in desulfurization systems for industries such as thermal power plants, aluminum refineries, and oil refineries to transport limestone or gypsum slurry. The allowable chloride ion concentration in the slurry is 60000ppm, and the pH value of the slurry is allowed to be between 2.5-13.
Types and structural characteristics of pumps
There are two main types of DT series desulfurization pumps. One is the DT type, which is a horizontal, axial suction, single-stage, single suction, centrifugal desulfurization pump; The other type is TL type, which is a vertical, axial suction, single-stage, single suction, centrifugal desulfurization pump.
1. Structural characteristics and models of DT type horizontal desulfurization pump
(1) The structural characteristics of DT type horizontal desulfurization pump include impeller, volute, rear guard plate, packing box, liner plate and shaft seal device. The pump head of DT type horizontal desulfurization pump is a single-layer shell structure. The overcurrent components are made of corrosion-resistant and damage resistant cast alloys (including blade snail shell, rear guard plate, and liner plate). The impeller and shaft are connected by threads.
The bracket is lubricated with thin oil. It mainly consists of parts such as bracket body, bracket cover, shaft, bearing box, bearing, bearing cover, sleeve, nut, oil seal, water blocking plate, etc. The detailed structure of DT type desulfurization pump is shown in Figure 1.There are two main types of DT series desulfurization pumps. One is the DT type, which is a horizontal, axial suction, single-stage, single suction, centrifugal desulfurization pump; The other type is TL type, which is a vertical, axial suction, single-stage, single suction, centrifugal desulfurization pump.

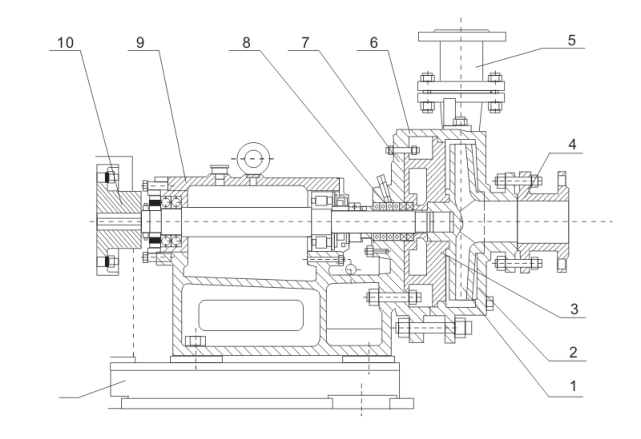

Structural diagram
1. Impeller
2. Spiral shell
3. Rear guard plate
4. Entrance short pipe
5. Export short pipe
6. Packing box
7. Lining board
8. Mechanical seal
9. Bracket
10. Coupling
11. Base
